- Walk-in Chambers
Psychrometric Climatic Chambers
Environmental test rooms, designed for the development and performance evaluation of air conditioners, gas boilers and heat pumps. Usually installed in sets of two environmental chambers, allowing for precise Indoor and Outdoor climatic simulation. Also possible is the integration of third party enthalpic test tunnel.
Description
Designed for the development and performance evaluation of air conditioners, gas boilers and heat pumps. Simulating “Indoor” and “Outdoor” conditions with temperature, humidity and air flow independently controlled. Available with ATEX protection features and accessories. Related test standards: DIN EN 14511 | DIN EN 14825 | DIN EN 16147 ISO 5151 | ISO 13253 JIS B 8615-1 ASHRAE 41.1 | ASHRAE 41.2 | ASHRAE 41.3 | ASHRAE 41.6
Specifications
- TECHNICAL SPECIFICATIONS AND PERFORMANCEAralab can customize dimensions and performances of the test chambers.
- INDOOR ROOM
- TEMPERATURE+5ºC to +45ºC
- RH RANGE20% to 90% RH
- TEMPERATURE PRECISION± 0.5ºC
- TEMPERATURE UNIFORMITY± 2.0ºc
- HUMIDITY PRECISION± 2% RH
- HUMIDITY UNIFORMITY± 2% RH
- OUTDOOR ROOM
- TEMPERATURE-30ºC to +60ºC
- RH RANGE20% to 90% RH
- TEMPERATURE PRECISION± 0.5ºC
- TEMPERATURE UNIFORMITY± 2.0ºC
- HUMIDITY PRECISION± 2% RH
- HUMIDITY UNIFORMITY± 2% RH

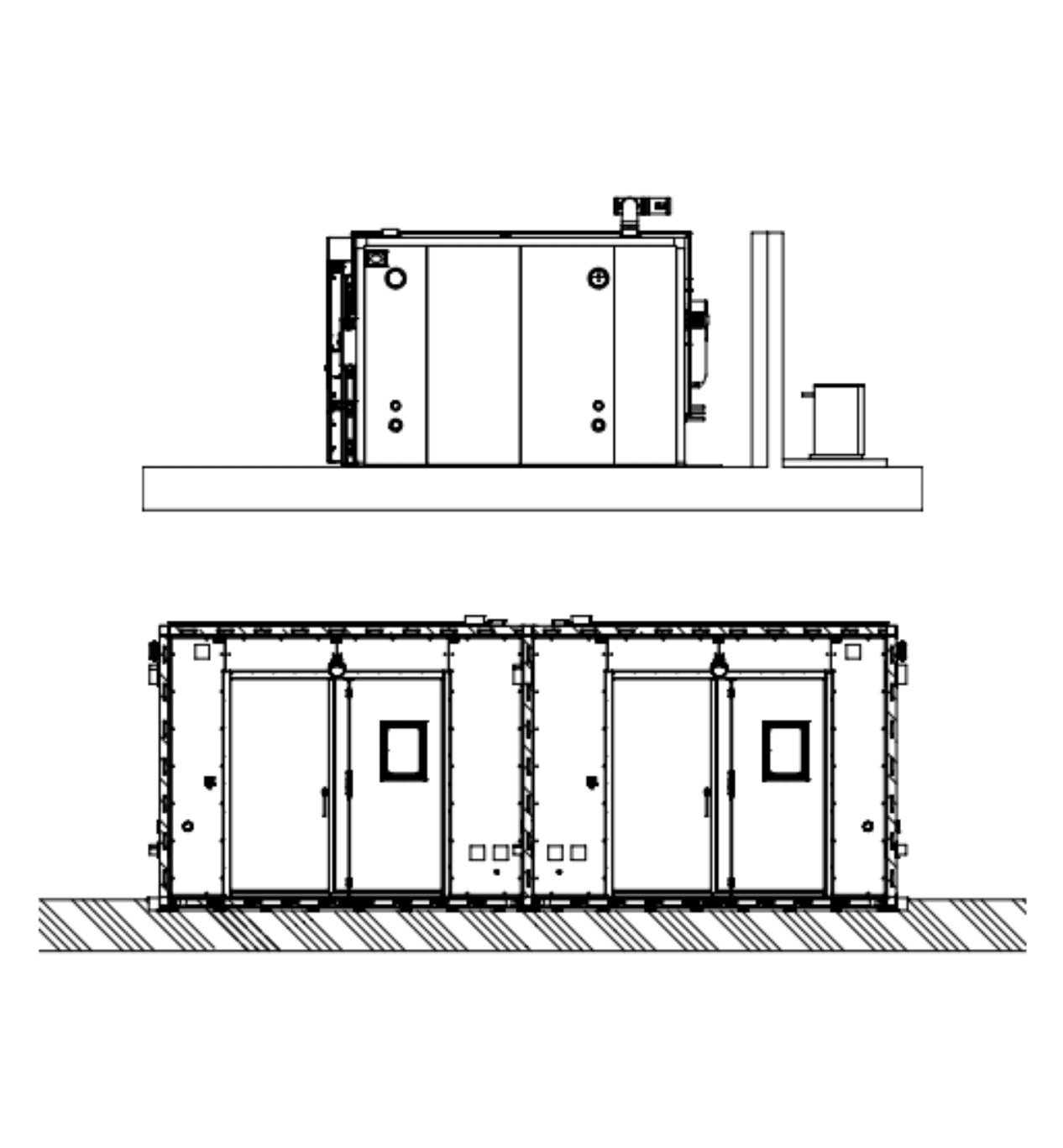

- DIMENSIONS AND DRAWINGSAralab can customize dimensions and performances of the test chambers. Systems can be supplied with enthalpic test tunnel.
- Available sizes
- 39298L
