TESTA 600 / 1200 PHCI Curing Chambers
Temperature and Humidity curing chambers, designed to aid curing of cement, concrete and mortar. They feature durable stainless-steel construction and specially reinforced shelves. Great uniformity and performance to meet any curing environment. Highly suitable for keeping 98%rH and stable temperature.
Description
Chambers designed to test the curing of cement, concrete and mortar samples, according to ASTM C192/C192M-14, IEC 679. Various optional accessories are available to further testing like UV and Solar radiation, CO2 Carbonation, and stainless-steel trays with draining capacity.
Specifications
- INNER DIMENSIONS (H x W x D) (mm)
- TESTA 600 PHCI1,340 x 600 x 660
- TESTA 1200 PHCI1,340 x 1,320 x 660

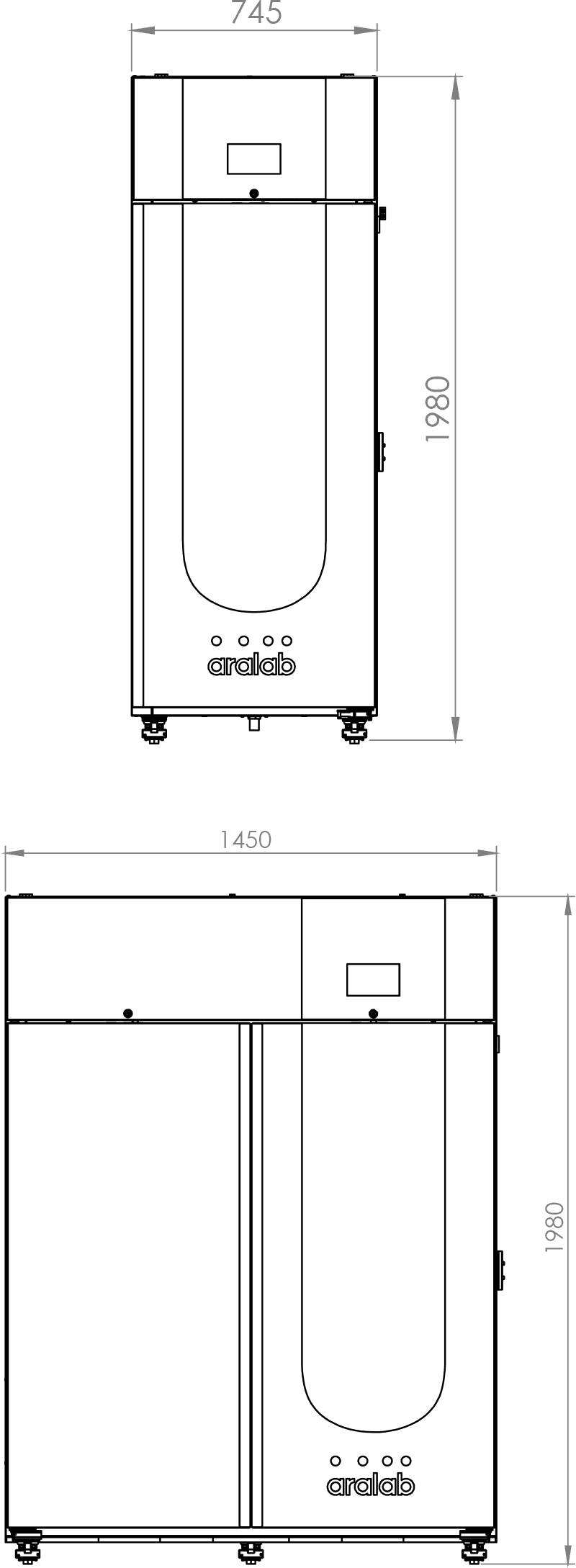

- EXTERNAL DIMENSIONS (H x W x D) (mm)
- TESTA 600 PHCI1,980 x 730 x 920
- TESTA 1200 PHCI1,980 x 1450 x 810
- INTERNAL VOLUME (Liters)600 and 1,200 liters
- TEMPERATURE RANGEFrom -5ºC to 60ºC
- HUMIDITY RANGEFrom 20% to 98%
- SHELF SIZE510 mm x 640 mm each
- SHELVES
- S6004 SHELVES (more can be added)
- D12008 SHELVES (more can be added)
- Available sizes
- 543L
- 1194L
