TESTA_e COMPACT
Testa_e Compact chambers enable rigorous temperature testing in compact equipment, combining high performance, precise control and efficient use of available space.
Description
Testa_e Compact temperature test chambers have been developed to provide precise and reproducible conditions for thermal and climatic testing across different sectors. With robust construction, a stainless steel interior, adjustable shelves and a programmable touch-screen controller, they allow automatic test programs to be created while ensuring high uniformity of conditions inside the chamber.
Specifications
- TESTA_e COMPACT 60 E80
- TEMPERATURE RANGE-80 °C to +150 °C
- TEMPERATURE FLUCTUATION≤ 0.5 °C
- TEMPERATURE DEVIATION± 2.0 °C (> 100 °C); ± 1.5 °C (≤ 100 °C)
- TEMPERATURE UNIFORMITY2.0 °C (100 °C); 1.5 °C (≤ 100 °C)
- HEAT-UP RATE+20 °C to +150 °C in ≤ 25 min
- PULL-DOWN RATE+20 °C to -70 °C in ≤ 55 min
- TEMPERATURE CHANGE RATEHeat-up: ≥ 6 °C/min; pull-down: ≥ 2 °C/min

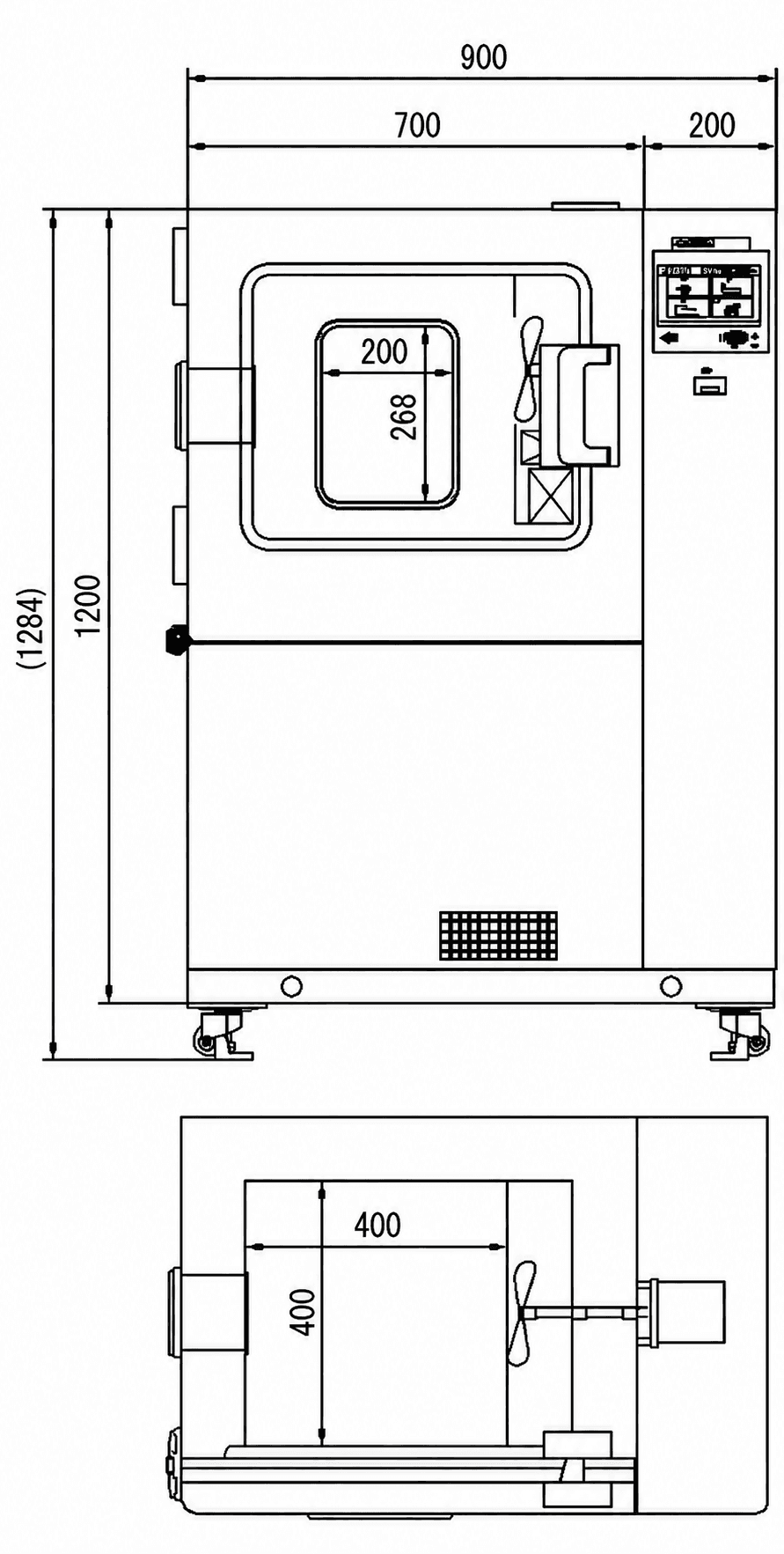

- EXTERNAL DIMENSIONS (H × W × D)1284 × 900 × 604 mm
- INTERNAL DIMENSIONS (H × W × D)375 × 400 × 400 mm
- NOISE LEVEL≤ 55 dB(A)
- Available sizes
- 60L
