FieldClima Walk-In Stability Container Rooms
FieldClima Stability container rooms extend Aralab’s walk-in stability expertise to fully self-contained, mobile systems. They deliver the same controlled temperature and humidity performance as traditional stability chambers, now integrated into 20 ft and 40 ft containers that can be installed outdoors or indoors. Pre-configured with high-capacity shelving and an adaptive interior layout, these mobile walk-in chambers provide up to 40 000 L of usable volume for stability studies, testing or long-term storage of sensitive products. Environmental conditions are controlled with consistent precision over time, with alarms, remote notifications and full electronic records to support regulated applications. Ideal for sites that lack internal space or prefer a cost-sensitive alternative to built-in rooms, the FieldClima Series offers a plug-and-play route to extra climate-controlled capacity, without structural work or disruption to existing laboratories and production areas.
Description
FieldClima Stability Series The same precision • A large capacity • Anywhere you need it. Key features - Mobile walk-in stability rooms in 20 ft and 40 ft containers, ready for outdoor or indoor installation. - Stability-grade climate performance, with temperature from 15 ºC to 45 ºC and humidity from 35% to 90% rH, with tight fluctuation and uniformity. - High-efficiency shelving included as standard, with modular aluminium racks (5 tiers per module) and up to 150 kg load per shelf. - ClimaPlus Web controller software, alarms, remote notifications and IQ/OQ/PQ and ISO calibration options for GxP-compliant environments.

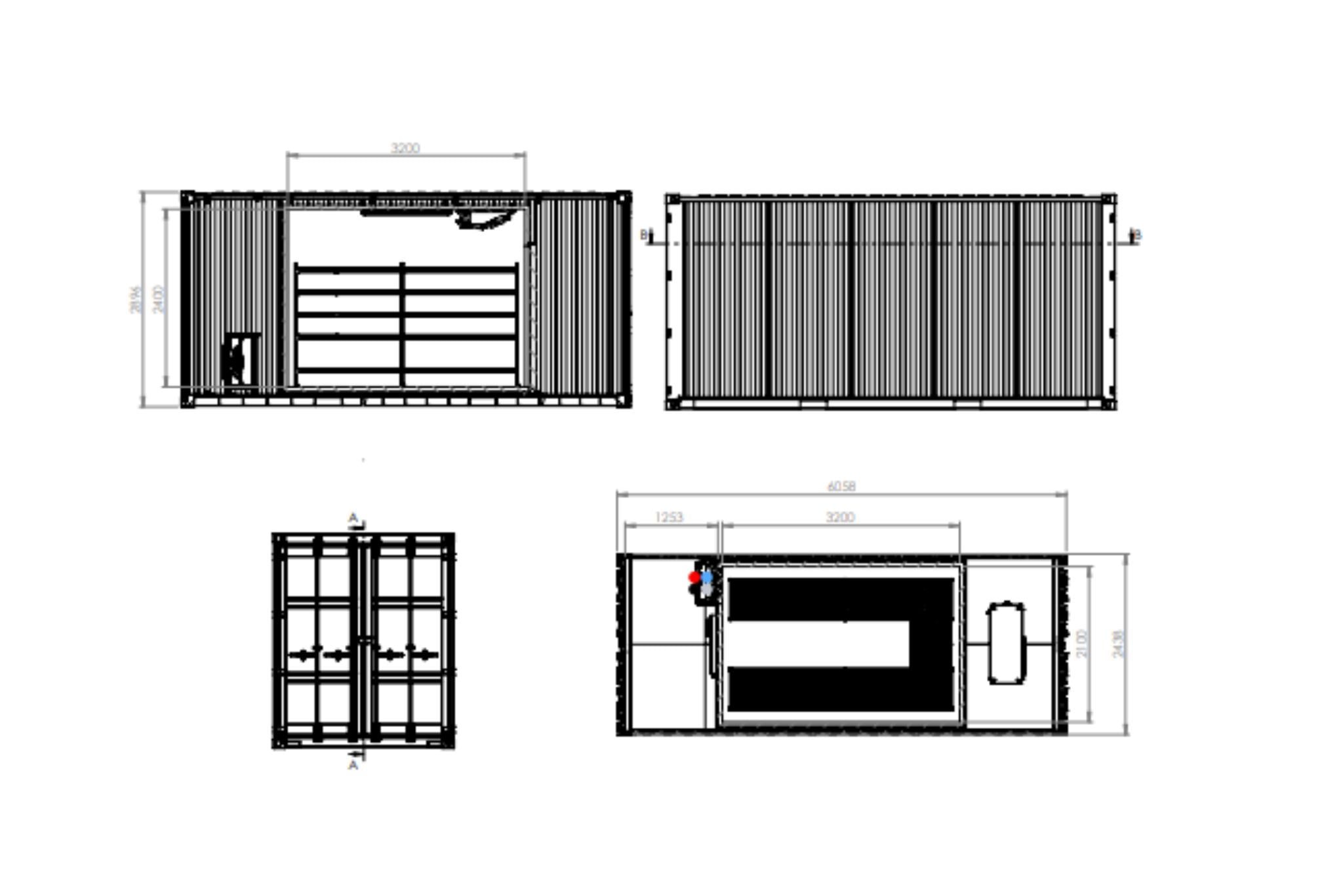

Specifications
- Interior volumes
- FieldClima Stability 22 PH22,000 L (22 m³)
- FieldClima Stability 40 PH40,000 L (40 m³)
- Approximate storage area
- FieldClima 22 PH14 m²
- FieldClima 40 PH21 m²
- Temperature range15 ºC to 45 ºC [extensions available on request]
- Temperature fluctuation in time± 0.5 ºC
- Temperature uniformity in space± 1.0 ºC
- Humidity range35% to 90% rH
- Humidity fluctuation in time± 1% rH
- Humidity uniformity in space± 2.5% rH
- Shelves and storageModular anodised aluminium racks with polyethylene shelves, 5 tiers per module; additional tiers can be added. Maximum load 150 kg per shelf (evenly distributed).
- LightingCeiling-mounted linear LED lighting, operated by switch, door trigger or controller programme.
- AirflowDynamic airflow with adjustable velocity set-point on the ClimaPlus controller, designed to promote uniform temperature and humidity across all shelves.
- ConstructionReinforced ISO shipping container with marine epoxy coating, insulated inner chamber with 60 mm polyurethane panels, slip-resistant protected floor and insulated inner door with safety opening.
- Connections400 VAC, 50 Hz, 3-phase + N + PE supply; ¾” demineralised water inlet; 50 mm floor drain; RJ45 Ethernet port for networking.
- Available sizes
- 22000L
- 40000L
