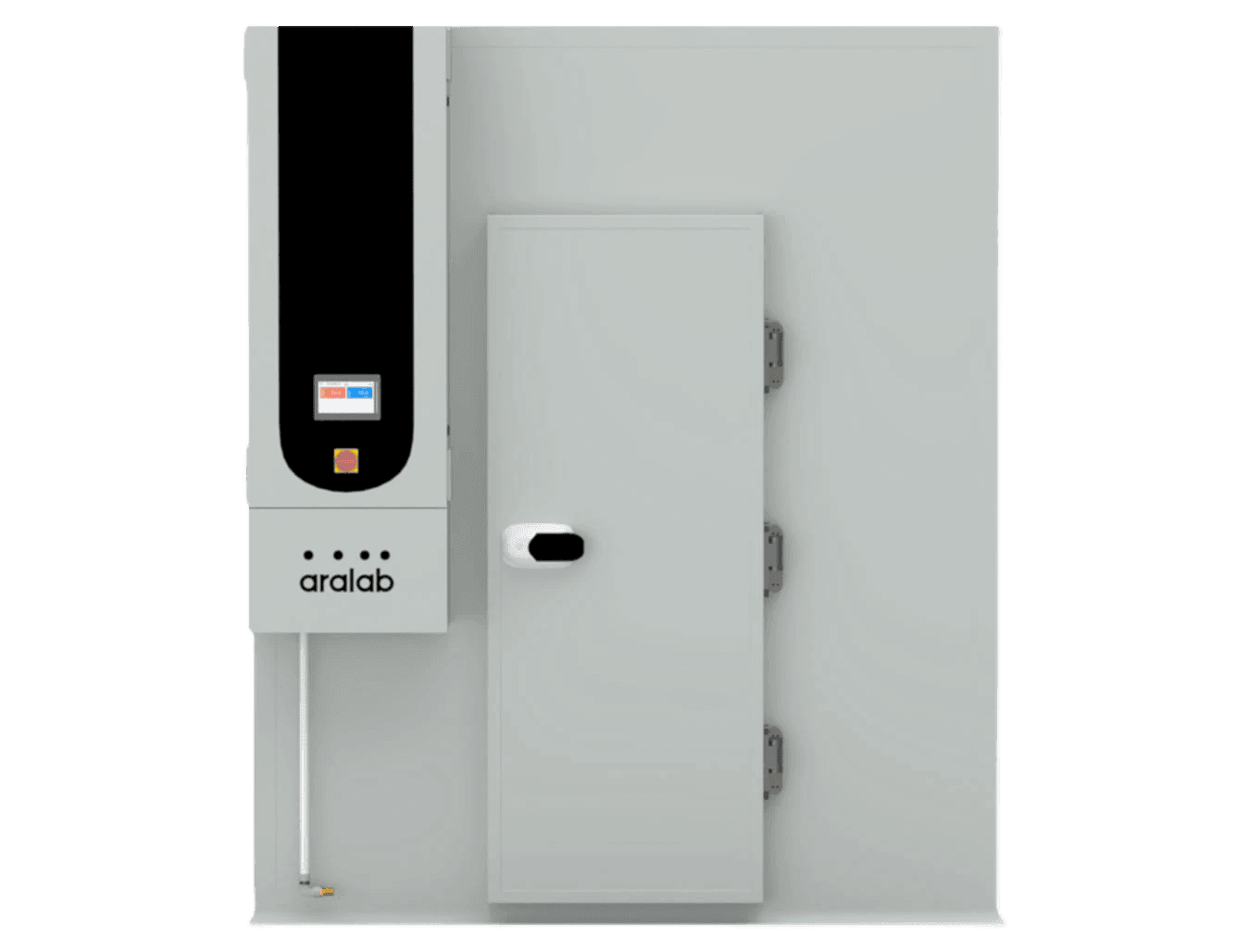

SC Walk-in Stability Chambers
Controlled environment rooms with temperature, humidity and airflow control. These Stability Chambers are ideal for pharmaceutical stability testing and beyond – from drug and shelf-life testing to quality control for food, beverages, and cosmetics.
Description
Stability Chambers designed for pharmaceutical stability testing according to ICH Q1A standards. KEY FEATURES - Environmental conditions controlled with consistent precision through the years - Pre-configured with shelves designed to provide an efficient use of the internal volume - Adaptive future proof design, with height adjustable trays and shelves that are easy to insert or remove depending on storage needs - Content protection features, with configurable high / low temperature and humidity alarms and automatic remote notifications - FDA 21 CFR part 11 compliant software (Gamp5) - IQ, OQ, PQ and ISO calibration documents
Specifications
- Interior dimensions (H x W x D)
- SC 10000 PH2140 x 2010 x 2410 mm / 84.25 x 79.13 x 94.88 inches
- SC 15000 PH2,570 mm × 2,182 mm × 4,068 mm / 101.18 × 85.91 × 160.16
- SC 20000 PH2140 x 2010 x 4800 mm / 84.25 inches x 79.13 x 188.97 inches

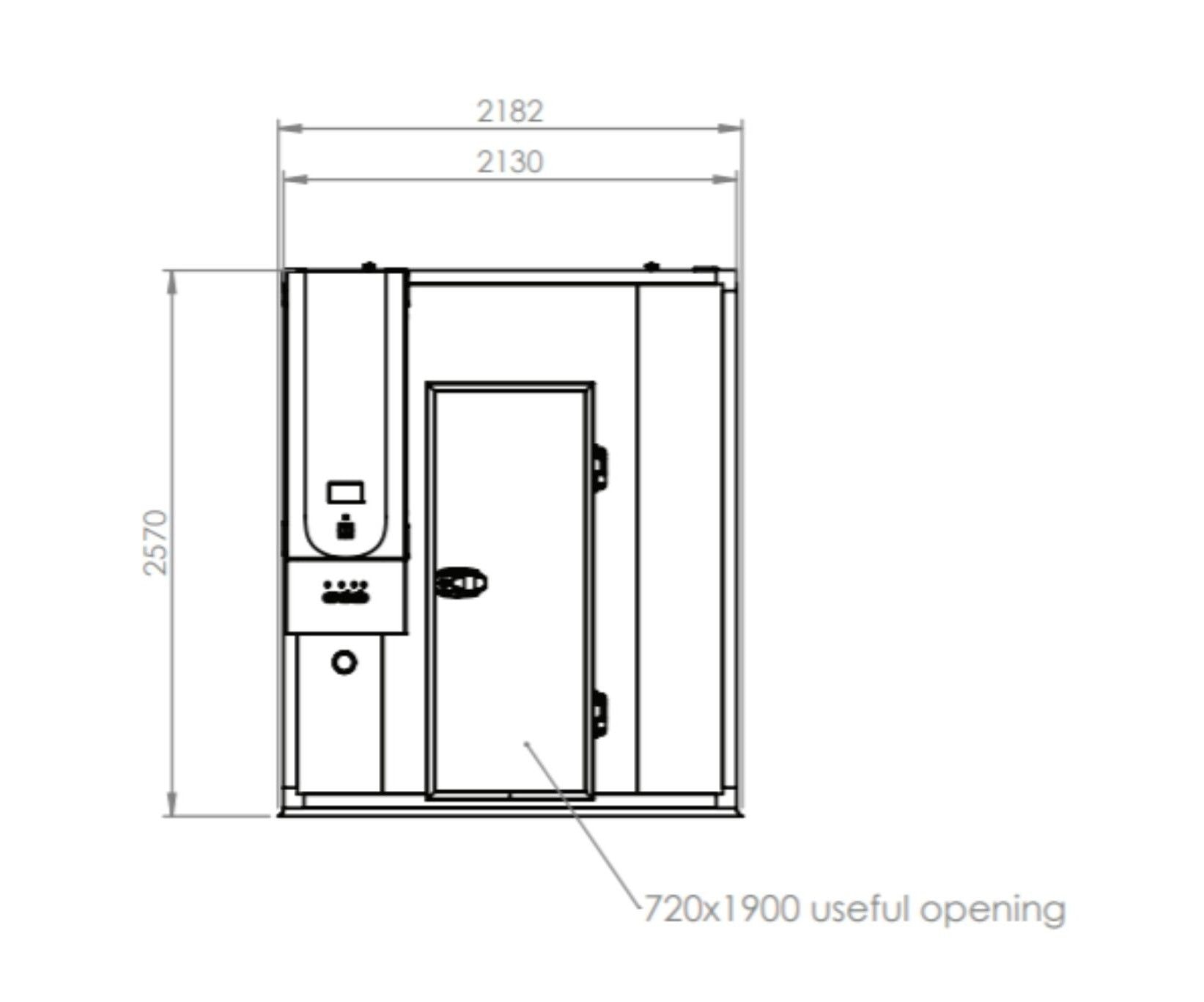

- Exterior dimensions (H x W x D)
- SC 10000 PH2570 x 2182 x 2868 mm (3440 with open door) / 101.18 x 85.90 x 112.91 inches (135.43 with open door)
- SC 15000 PH2,570 mm × 2,182 mm × 4,068 mm / 101.18 × 85.91 × 160.16
- SC 20000 PH2610 x 2225 x 5380 mm (5950 with opened door) / 102.76 x 87.60 x 211.81 inches (234.25 with open door)
- Temperature range15ºC to 45ºC
- Temperature uniformity (ºC)± 1.0ºC
- Humidity range35% to 90% rH
- Humidity uniformity (%)± 2.5% rH
- Available sizes
- 10000L
- 15000L
- 20000L
