- Reach-in Chambers

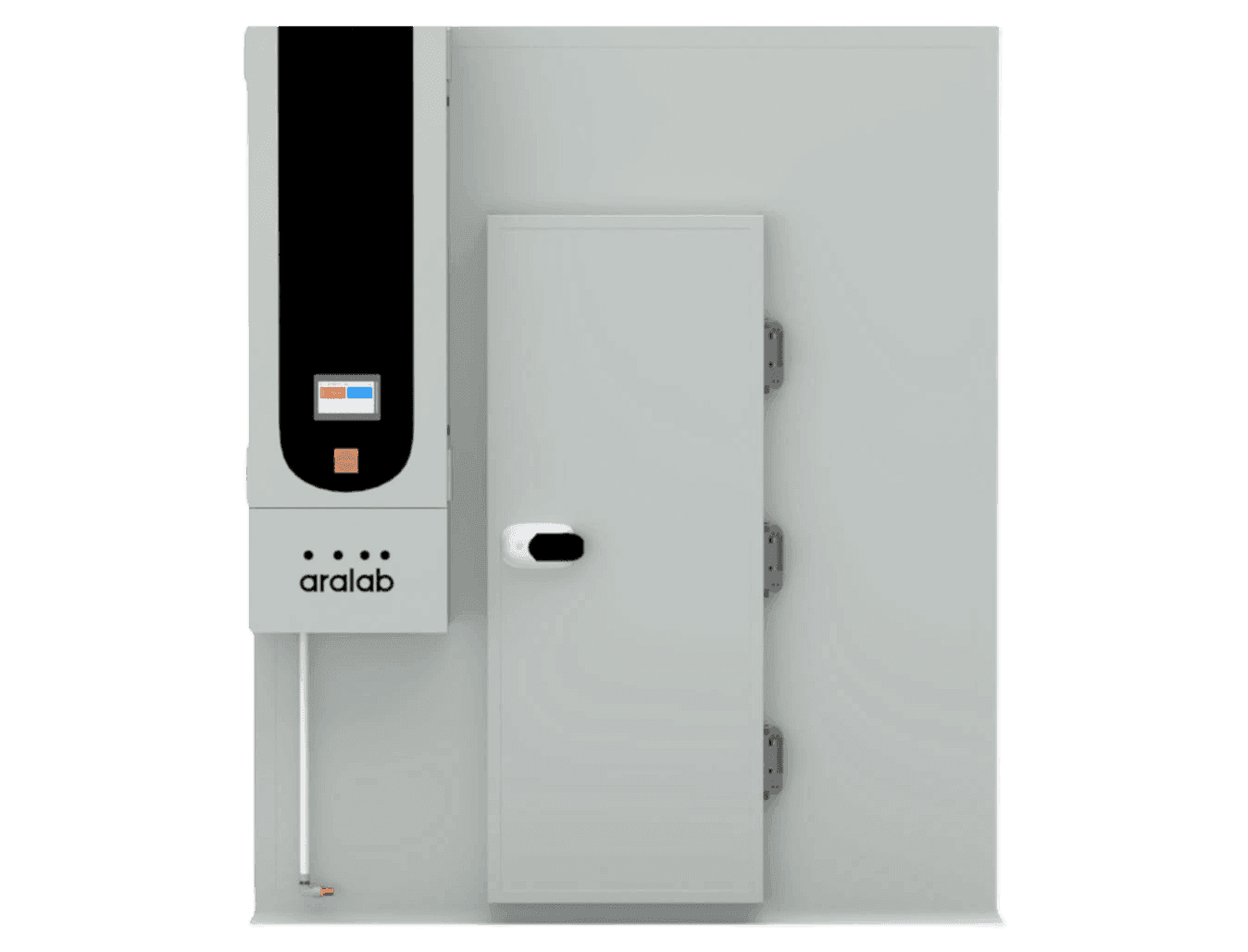

Reach-In’ Stability Chambers
600 or 1200-litre climatic chambers with temperature and humidity control. Essential for stability studies and testing in compliance with ICH Q1A guidelines. Flexible interior configuration, allowing easy adjustment of the number of shelves and the spacing between them. Available with data logging software compliant with FDA 21 CFR Part 11 and EudraLex requirements, as well as IQ/OQ/PQ qualification packages.
Description
Capable of reproducing all stability conditions required by the ICH Q1A guideline, with outstanding levels of uniformity and stability. All units are equipped with a controller and software compliant with FDA 21 CFR Part 11 for data acquisition and logging. IQ, OQ and PQ documentation and procedures, Installation Qualification, Operational Qualification and Performance Qualification, are supplied in accordance with the requirements of quality assurance bodies.
Specifications
- INTERIOR DIMENSIONS (H x W x D) (MM)
- S6001330 X 600 X 680
- D12001330 X 1266 X 680
- EXTERIOR DIMENTIONS (H x W x D) (MM)
- S6001980 X 745 X 980
- D12001980 X 1450 X 810
- INTERNAL VOLUME (LITRES)600 e 1200
- TEMPERATURE RANGE-5ºC to 60ºC / StabilClima 1200 PN/PH-N -20°C extension (water-cooled, optional)
- UNIFORMITY (ºC)+/- 1ºC
- HUMIDITY RANGE (%RH)20 a 95% RH
- UNIFORMITY+/- 2% RH
- SHELVES / STORAGE AREA (m²)600 = 4 / 1.33 m² 1200 = 8 / 2.67 m²
- S6004 shelves / 1.31 m² / Additional shelves can be added
- D12008 shelves / 2.6 m² / Additional shelves can be added
- ELECTRICAL CONNECTION1/N/PE AC 230V +/- 10%; 50HZ
- ICH COMPLIANCEICH Q1A
- Available sizes
- 543L
- 1194L
